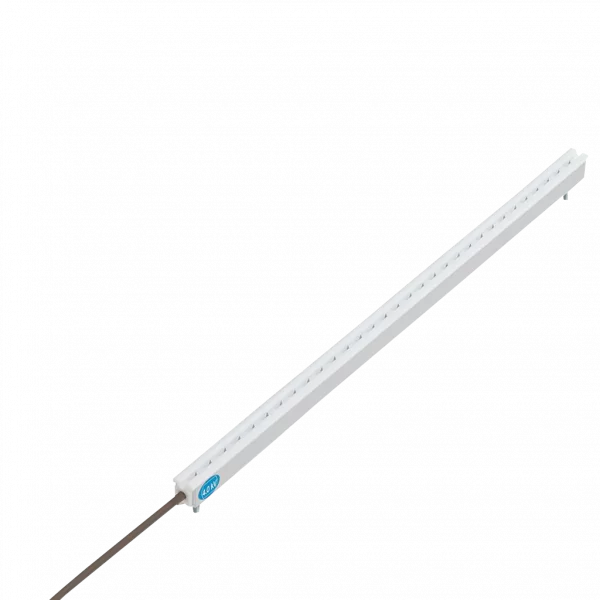

Simco Ion VicinION - Anti-Static Bar

The VicinION IQ is a compact, high-performance anti-static bar, designed for short-range static neutralisation in industrial and office environments. Engineered with an integrated high-voltage power supply, this bar requires only a 24V DC input, making installation simple and efficient via an M8 connector.

Optimised for distances between 5 mm and 75 mm from the material, the VicinION IQ provides highly effective static elimination, even in tight spaces where traditional anti-static bars cannot be installed. Its patented high-frequency, steady-state high-voltage system ensures continuous and efficient static neutralisation, making it ideal for compact machines, office equipment, and precision printing applications.

The VicinION IQ is fully IQ compatible, meaning it integrates seamlessly with the IQ Manager, allowing full static control and monitoring for improved process efficiency. With IP66-rated protection, the bar is designed for industrial environments, offering easy cleaning and reliable operation in dusty or humid conditions.

Features:

Short working distance: 5 - 75 mm;
Incorporated high voltage power supply, input voltage 24V DC;
Mounting of the VicinION is backwards compatible with small sized Simco AC anti static bars and is accomplished with M4 sliding bolts;
The VicinION has a patented auto-balancing ionization, making it suitable for critical applications that need neutralization below 100 V;
Visual indications with multicolour LED.

Optimise your static control with the VicinION IQ!
Its compact design, IP66 protection, and IQ compatibility make it the ideal choice for small-scale and precision applications. Contact us today for more details!

Working distance:	5 - 75 mm
Housing material:	Plastic
Emitter pins:	Special alloy
Cable:	Low voltage cable
Connector:	M8-connector, 5-pole
Weight:	700 g/m
Ambient temperature:	0 - 55°C
Use circumstances:	Industriall
U Primary:	24 V DC, <0,2A
Protection classification:	IP66
Suitable power unit:	Integrated, 24V DC voltage input
Indication:	2-colour LED green/red
I/O signals:	Remote on/off 10-30 V DC
Mounting material:	M5x18 sliding bolt
Inputs:
Remote on/off:	10-30 V (Ri>10k)
Switched on time:	30ms
Outputs
Output voltage:	Max 8kv
Current per emiter to ground:	Max 120 μA
High voltage OK (HV OK):	Supply Voltage-1 V. Max. 50 mA
Option:	5-wire cable with M8-connector, 5m 5-wire cable, M12-M8, 2m

Highly effective static neutralisation, even at very close distances.
Compact and lightweight, ideal for tight installation spaces.
Shockproof emitter pins, ensuring user safety.
IP66-rated, making it suitable for industrial environments requiring frequent cleaning.
Seamless IQ integration, allowing real-time static control and process optimisation.
Reliable performance, thanks to steady-state high voltage ionisation.

The VicinION IQ Anti-Static Bar is ideal for industries and applications requiring precise static control in compact spaces, including:
