DNE Laser V-Bend Series CNC Bending Machine

The V-Bend series CNC bending machine by DNE LASER is a high-precision bending solution engineered for demanding sheet metal applications. Combining DNE LASER’s advanced R&D, state-of-the-art technology, and deep expertise, the V-Bend is designed to maximize processing accuracy and efficiency while minimizing material waste. Featuring a patented closed O-frame design, this machine ensures exceptional rigidity and stability throughout the entire bending length. Compact, practical, and robust, the V-Bend is especially well-suited for batch production and high-throughput industrial environments.

Precision, performance, and productivity — the V-Bend series sets a new standard in CNC bending technology. Contact us today for more details!

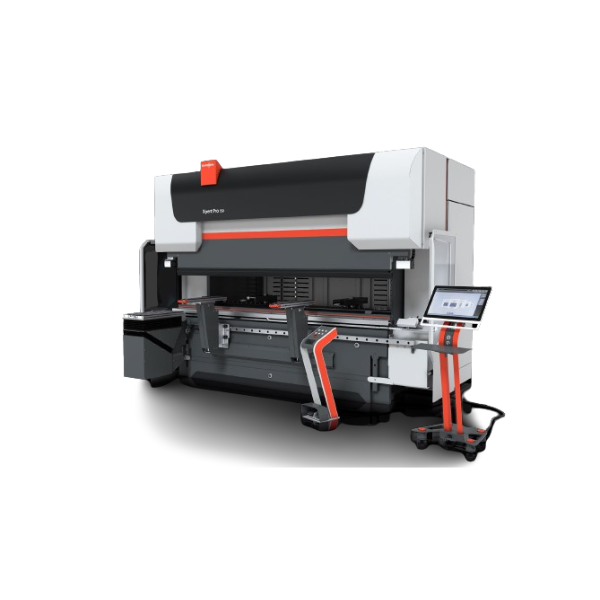

DNE Laser V-Bend Series CNC Bending Machine 1

DNE Laser V-Bend Series CNC Bending Machine 2

	V-Bend 50/1050	V-Bend 80/2100	V-Bend 100/3100	V-Bend 160/3100
Bending force	500kN	800kN	1000kN	1600kN
Bending length	1050mm	2100mm	3100mm	3100mm
Cylinder stroke	200mm	200mm	250mm	250mm
Opening height	500mm	500mm	550mm	550mm
Side plate spacing	1100mm	2150mm	3150mm	3150mm
X-Axis trvel	300mm	500mm	500mm	500mm
X-Axis precision	0.05mm	0.05mm	0.05mm	0.05mm
X-Axis maximum speed	400mm/s	400mm/s	400mm/s	400mm/s
R-Axis travel	100mm	100mm	100mm	100mm
R-Axis maximum speed	100mm/s	100mm/s	100mm/s	100mm/s
R-Axis precision	0.05mm	0.05mm	0.05mm	0.05mm

Exceptional bending precision and consistent results across full-length operations
High productivity with fast cycle times and intelligent positioning systems
Long-term structural stability provided by O-frame design
Reduced setup time and operational costs with intuitive CNC controls
Cost-effective investment with quick ROI
Ideal for batch production and high-volume bending needs
Stable performance with minimal maintenance

The V-Bend series is ideal for industries requiring high-precision and high-volume sheet metal bending, such as:
