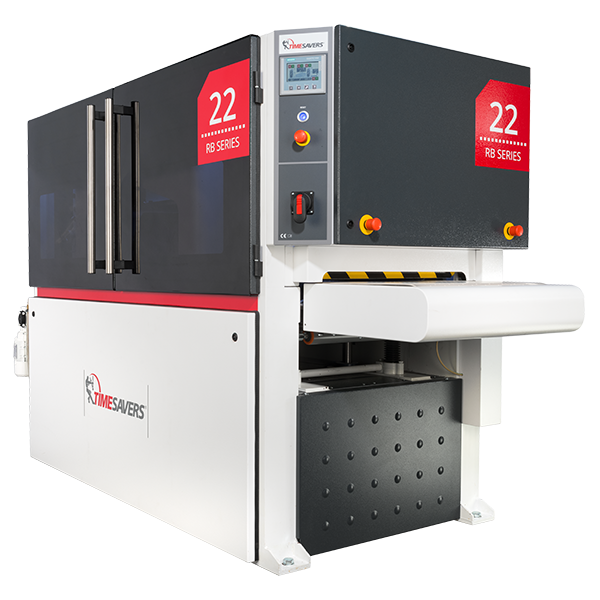

Timesavers 22 Series Hammerhead - Deburring and Finishing Machine

The Timesavers 22 Series is a highly versatile and robust machine designed for dry finishing and deburring of metal. Available in three working widths—900 mm, 1050 mm, and 1280 mm—this machine can be equipped with up to three heads, making it a flexible solution for a variety of applications, including slag removal and surface finishing.

Built for durability and reliability, the 22 Series efficiently removes irregularities from laser-cut parts while keeping operational costs low. Its different configurations allow the use of abrasive belts, multi-discs, and brushes to achieve optimal results in deburring and finishing. For applications involving plasma or flame-cut steel parts with heavy slag, the optional Hammerhead module ensures quick and effective slag removal.

Improve your production efficiency with the Timesavers 22 Series – a reliable, cost-effective, and flexible solution for all your deburring and finishing needs. Contact us today for more information!

Timesavers 22 Series Hammerhead - Deburring and Finishing Machine 1

Timesavers 22 Series Hammerhead - Deburring and Finishing Machine 2

Timesavers 22 Series Hammerhead - Deburring and Finishing Machine 3

Timesavers 22 Series Hammerhead - Deburring and Finishing Machine 4

Timesavers 22 Series Hammerhead - Deburring and Finishing Machine 5

Number of heads:	1 - 3
Head types:	roller, brush, multi disc and hammerhead
Machine working width:	900, 1050, 1280 mm
Abrasive belt length:	1900, 2620 mm
Application:	Deburring Edge rounding Finishing Heavy slag removal
Table opening:	0 - 125 mm
Transport speed:	2.5 - 14 m/min
Contact roller diameter:	150, 200 mm
Power supply:	400 Volt / 50 Hz
Certifcation:	CE
Weight:	1150 - 4000 kg

Multi-functionality – Capable of deburring, edge rounding, slag removal, and finishing in one machine.
Cost-efficient operation – Low operating costs with high production efficiency.
Flexible configurations – Customizable with different head types to meet specific processing needs.
Automated precision – Digital thickness readout and frequency-controlled transport motor ensure consistent results.
Slag removal capability – The optional Hammerhead module removes heavy slag in one pass.

Deburring – Removal of sharp edges and irregularities from punched, laser-cut, and water jet-cut parts.
Edge rounding – Breaking sharp edges for improved safety and coating adhesion.
Slag removal – Effective processing of plasma and flame-cut parts with large burrs.
Surface finishing – Achieving a smooth, consistent finish on stainless steel, aluminum, and other metals.
